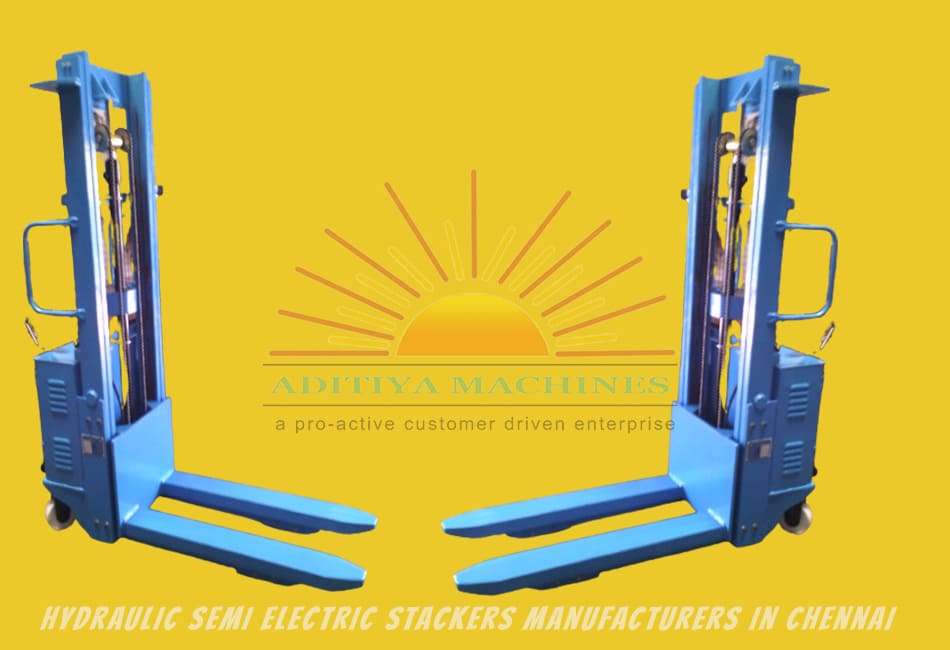

HYDRAULIC SEMI-ELECTRIC STACKER
This equipment is manually push-around type electro-hydraulic lifting of load.
Specification
• Load Capacity - 1000 kg
• Minimum height of fork arm - 90 mm
• Maximum height of fork arm - 4200mm
• Fork arm dimension - 685mm (W) x 1150mm (L)
• Load wheels - dia.80 x 70mm
• Steering wheels, nylon, dia.180 x 50mm
• Operation - 12VDC, compact hydraulic power-pack with push-button controls
• Battery voltage - 12VDC, 180 Ah
• Battery charger - 12V, 15A
