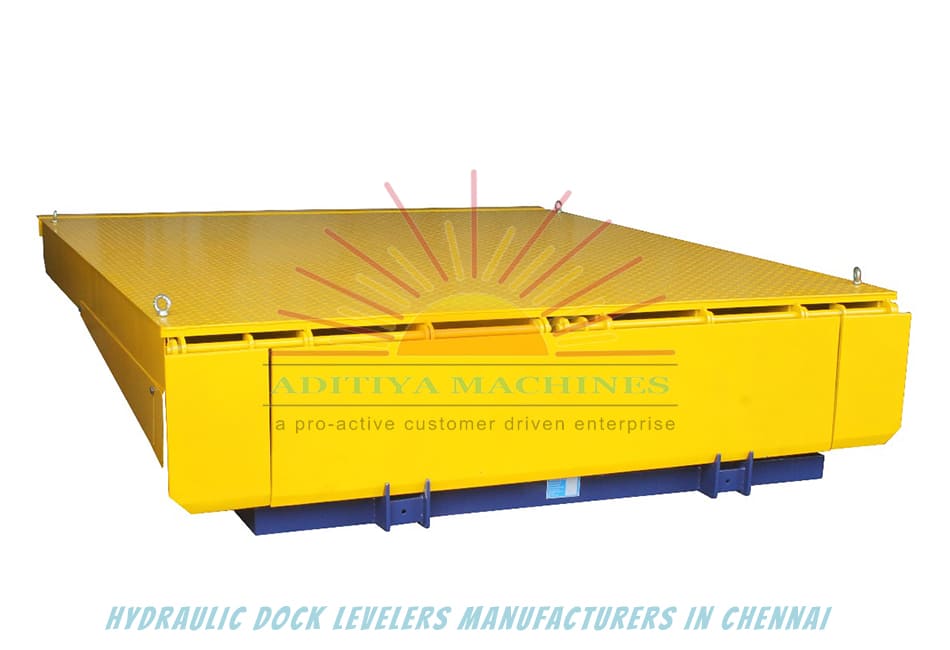

Hydraulic Dock Leveller

This is a hydraulic height-adjustable platform between the factory or warehouse floor to truck/container bed height.

Specification

• Load Capacity - 9000 kg point load (16000 kg uniformly distributed)

• Width - 2000mm

• Length - 2500 mm /3000 mm / 3500 mm / 4000 mm

• Pit Height - 550mm

• Height adjustment of deck - +350 & -250mm

• Lip Dimension - 400 mm x 2000 mm

• Operation - 3 phase AC powerpack with push-button controls

• Pit Dimension - 2000 mm (w) x 2500 / 3000 / 3500 / 4000 mm x height 550 mm

Salient and safety features

• Hose burst valve for deck cylinder

• 12VDC solenoid voltage, no electric shock

• Overload protection for electric motor

• 2 nos. Safety Prop-up for maintenance

• 1000 mm hydraulic deck lift for a person to go inside comfortably during maintenance

• Self-cleaning lip hinge system

• Radius lip system
