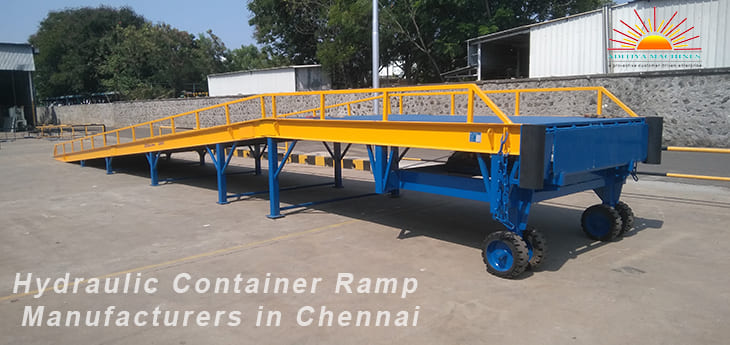

Hydraulic Container Ramp

hydraulic container ramp manufactuers in chennai

Container Ramp

This equipment is useful for loading and unloading containers using the forklift from ground level directly.

The height of the equipment is hydraulically adjustable by a hand hydraulic pump or AC/DC operated hydraulic power-pack. We suggest AC/DC operation for a high frequent usage.

We can also give a mechanical jack system of height adjustability for low budget accommodation.

Specification

• Load Capacity - 10000 Kg & 16000 Kg


• Height Adjustment Range - 1200mm to 1800mm from ground level


• Usable Width - 2000mm


• Height of safety rails on two sides - 300mm


• Overall dimensions - 2400mm (W) x 11700mm (L) ( 8 feet x 39 feet)
